ARC Ultra Long Range Multi-Sensor PTZ Camera System Solution

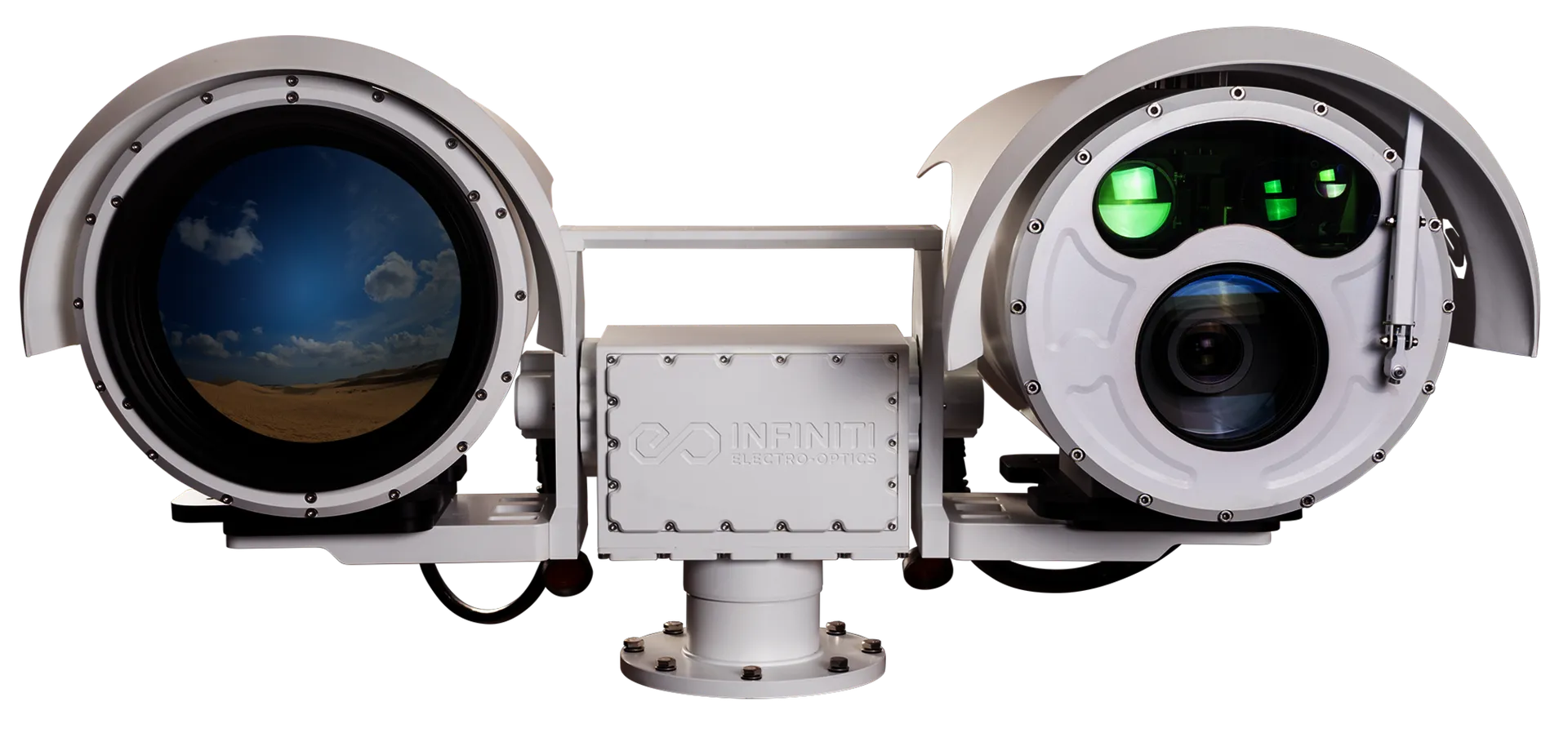

ARC Ultra Long Range Multi-Sensor PTZ Camera System
ARC ultra-long-range multi-sensor EO-IR PTZ camera system. Features include the longest-range visible camera, advanced cooled/uncooled thermal cameras, ZLID illumination, LRF laser rangefinder, and gyroscope stabilization.
ARCUltraLongRangeMulti-SensorPTZCameraSystem
ARC ultra-long-range multi-sensor EO-IR PTZ camera system. Features include the longest-range visible camera, advanced cooled/uncooled thermal cameras, ZLID illumination, LRF laser rangefinder, and gyroscope stabilization.
Key Features
Key Features
ARC ultra-long-range multi-sensor PTZ technology; Longest-range visible day/night zoom camera; Most advanced cooled or uncooled thermal infrared cameras; Optional ZLID™ long-range NIR illumination; LRF high-precision laser rangefinder; Stable image with gyroscope stabilization; MIL-STD-810F/G tested military-grade durability.
Camera Options
Available camera configurations for ARC 2050mm Ultra Long-Range Visible/NIR HD Camera 4K/8MP sensor, 1025 PPM @ 1km, extreme long-range 20–1225mm 61X Long-Range Visible/NIR 8MP Camera 8MP 1/1.8" sensor, 4K resolution, 21.7° to 0.36° FOV 10.6–1015mm 95X Long-Range Visible/NIR 8MP Camera 8MP sensor, UltraHD 4K resolution 100–1215mm HD Cooled Thermal MWIR cooled thermal, 12X zoom, 55+km detection 85mm–1400mm MWIR Cooled Thermal MWIR cooled thermal, extreme long range 73–915mm MWIR HD Cooled Thermal MWIR HD cooled thermal 46–1100mm MWIR Cooled Thermal MWIR cooled thermal 40–365mm LWIR HD Uncooled Thermal LWIR HD uncooled thermal 5km ZLID™ Night Vision Illuminator 5000m illumination, 808nm wavelength 4km ZLID™ Night Vision Illuminator 4000m illumination, 808nm wavelength 3km ZLID™ Night Vision Illuminator 3000m illumination, 808nm wavelength 2km ZLID™ Night Vision Illuminator 2000m illumination, 808nm wavelength 1.5km ZLID™ Night Vision Illuminator 1500m illumination, 808nm wavelength
TechnicalSpecifications

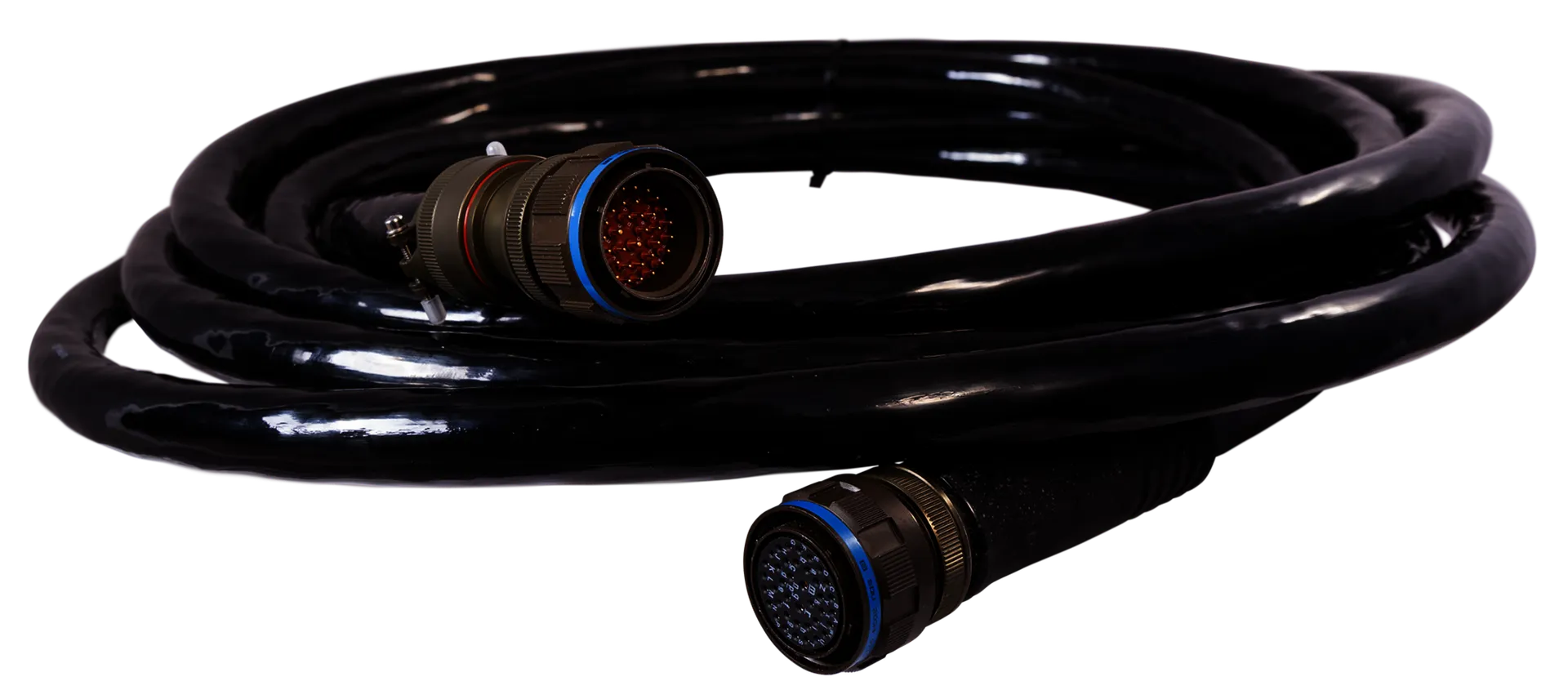

Ultra Long Range Camera: 2050mm 8MP Resolution: 4K/8MP UltraHD Protection Class: IP66/67 Housing Material: Reinforced Aluminum Thermal Sensing: 55+km (1215CTZ-HD) IR Illumination: 5km ZLID™ LRF Rangefinder: 30km Sensitivity Stabilization: Gyroscope Stabilization Temperature Range: -50°C to +65°C Connection: Military Grade Connector
Areas of Application
ARC ultra-long-range multi-sensor PTZ system provides 24/7 situational awareness, comprehensive perimeter security with ultra-long-range surveillance, military-grade durability for homeland defense operations, protection of coastlines and maritime borders, accurate threat detection and identification with multiple sensors, reliable performance in extreme temperatures and harsh conditions, and a solution optimized according to project requirements.
ARC Ultra Long Range PTZ System
24/7 situational awareness with an ultra-long-range multi-sensor PTZ camera system. Contact us for specifications, pricing, and installation services.
GetaQuote
Contact our team for detailed information and a tailored enterprise quote for ARC Ultra Long Range Multi-Sensor PTZ Camera System and our other solutions.
